At the development of the Nickl StarLight series all experiences made with the SunLight series are collected. Then the main features of them are inherited in order to offer a very cost-effective display.

In that way the cost-effective Nickl StarLight12X offers all what is neccesary to work effectively in the research and development inside a vehicle. For example its resolution of 1024 x 768 dots allows working with graphical user interfaces and its high brightness of 300 cd/m² in conjunction with the anti-glare surface eases reading the display content. Even mixed application with PC graphics and camera is possible because the user can select between the inputs.

Its very compact outer dimensions and the available accessories ease the integration on most places and a direct connection to the automotive mains eliminates the need of a DC/DC converter.
Particular features
  • Zooming (interpolated) for all resolutions lower than XGA (1024 x 768)
  • Shrink (interpolated) for all resolutions higher than XGA up to UXGA (1600 x 1200)
  • Two brightness levels via external signal switchable
  • Wide Supply voltage range 9..36 V
  • S-Video inputs for PAL, NTSC and SECAM
Order Data: 1EMST12X

Screen size 307.5 mm (12.1")
Active area 245.76 mm x 184.32 mm
Native resolution 1024 x 768 pixels (4:3)
Brightness 5..300 cd/m²
Adjustment brightness up/down buttons
auto-adjustment to environmental brightness
Two brightness levels via external signal switchable
Contrast 500:1
Viewing angle (U/D/L/R) 40/50/60/60°
Technology TFT-Stripe-RGB
Surface property Non-Glare, Hard-Coated
Colour depth 18-bit (262k colours)
Video Inputs 1 x VGA (RGB analog, 0.7Vpp, DC-Restore, H- and V-Sync)
1 x S-Video(Y/C), 75 Ohm with PAL, NTSC and SECAM timing
Supported resolutions DOS 720 x 400 pixels (4:3) @ 50..60 Hz
VGA 640 x 480 pixels (4:3) @ 56..85 Hz
SVGA 800 x 600 pixels (4:3) @ 56..85 Hz
XGA 1024 x 768 pixels (4:3) @ 56..85 Hz
Power supply 9..36 V
Power Supply features polarity-save
power-off on loss of video signal
Typ. power at full brightness 17 W
Connectors D-Sub 15 HD (female connector, 15 pins) for VGA
Mini-DIN 4 (female connector, 4 pins) for S-Video
D-Sub 5 (male connector, 5 pins) for Supply
Case Polystyrol, black

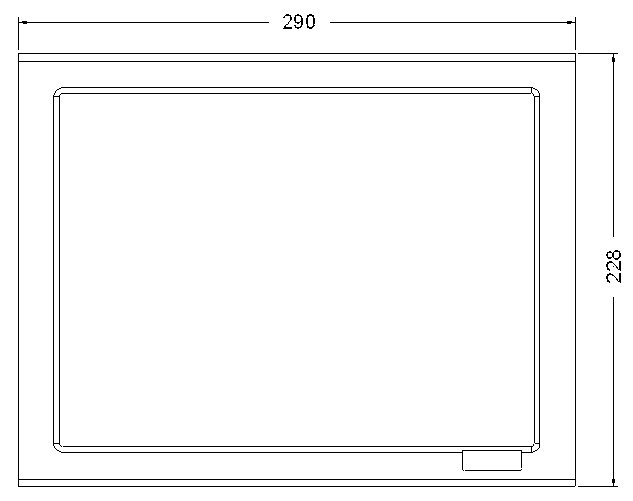

Dimensions (WxHxD) 290 mm x 228 mm x 34 mm
Operating temperature 0..55°C
Storage temperature -25..60°C
Mass 1675 g
